KEMET-C4AEQBW4800A3FJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	8 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	1100V (1.1kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	7.9 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.634" L x 0.787" W (41.50mm x 20.00mm)
Height - Seated (Max):	1.583" (40.20mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

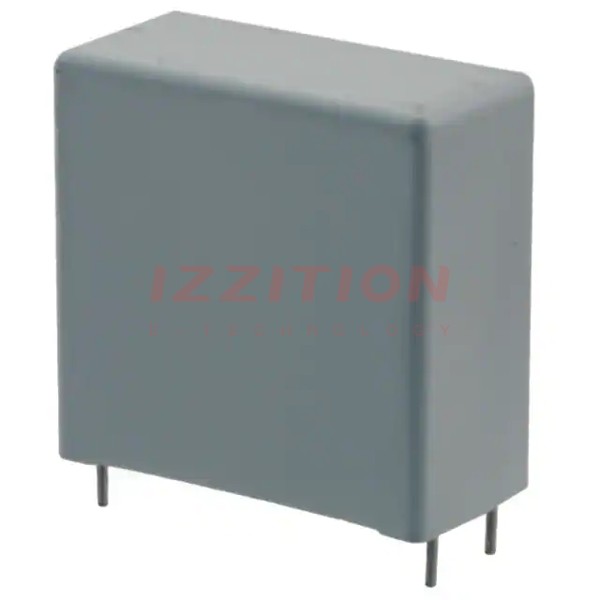

KEMET C4AEQBW4800A3FJ
