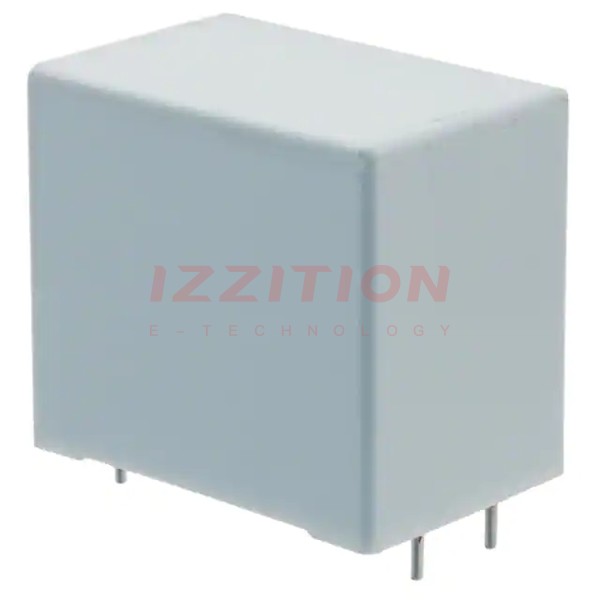

KEMET-C4AEJBW5200A3JJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	20 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	4.8 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial - 4 Leads
Size / Dimension:	1.673" L x 1.102" W (42.50mm x 28.00mm)
Height - Seated (Max):	1.465" (37.20mm)
Termination:	PC Pins
Lead Spacing:	1.476" (37.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

KEMET C4AEJBW5200A3JJ
