KEMET-C4AEJBU4270A1WJ - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.7 µF
Tolerance:	±5%
Voltage Rating - AC:	-
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	18.3 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max):	0.795" (20.20mm)
Termination:	PC Pins
Lead Spacing:	1.083" (27.50mm)
Applications:	DC Link, DC Filtering; High Frequency, Switching
Ratings:	-
Features:	-

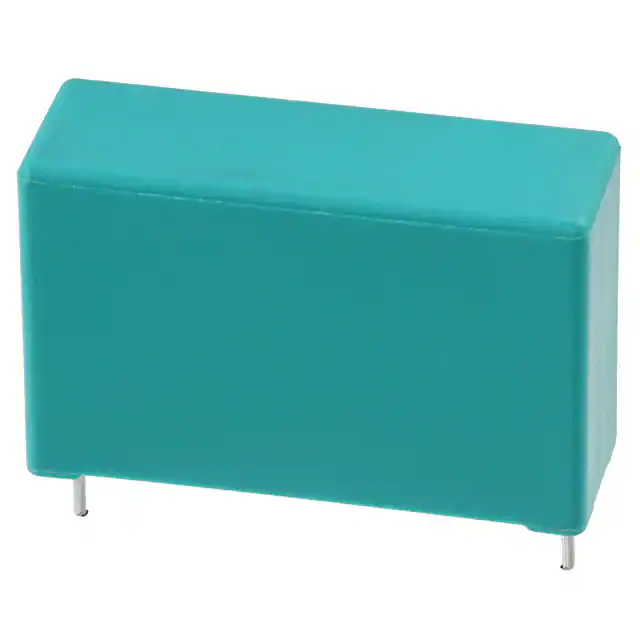

KEMET C4AEJBU4270A1WJ
