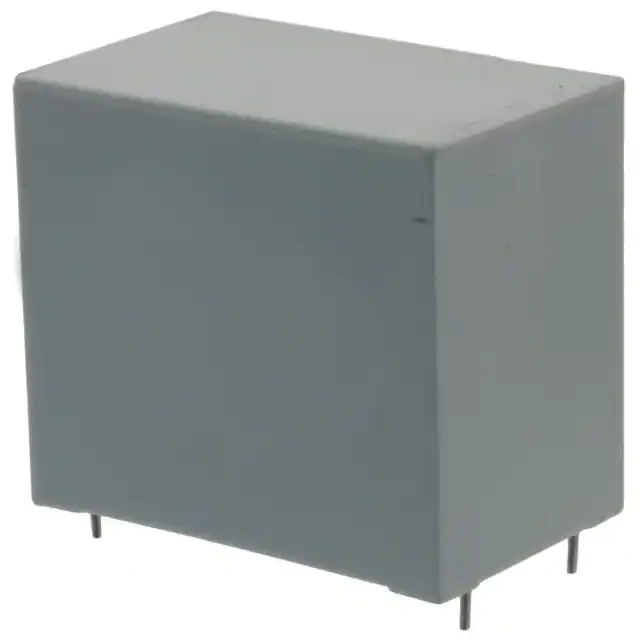

| Part Number | C4AEGBW6100A3NJ | C4AEGBW6100H3NJ |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 100 µF | 100 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | - | - |
| Voltage Rating - DC | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.2 mOhms | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial - 4 Leads | Radial |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) | 1.969" (50.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 2.067" (52.50mm) | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching | DC Link, DC Filtering; High Frequency, Switching |
| Ratings | - | - |
| Features | - | - |
