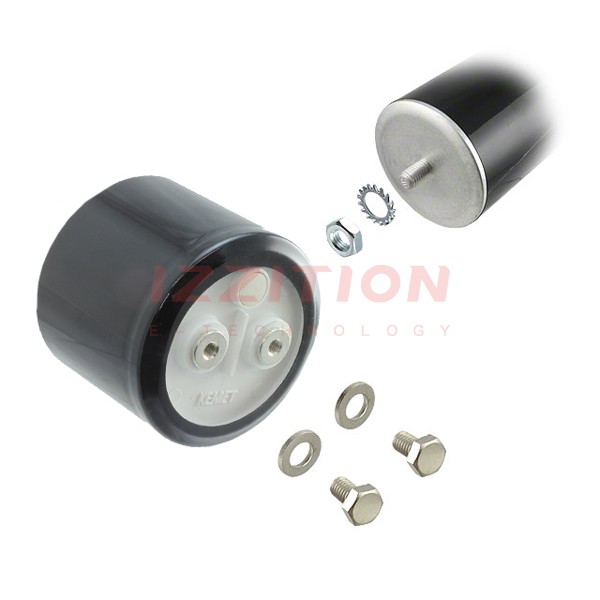

| Part Number | C44UOGT6100A8TK | C44UOGT6150A8TK | C44UQGT6100A8TK |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 100 µF | 150 µF | 100 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 900V | 900V | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 1.2 mOhms | 1.4 mOhms | 1.7 mOhms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 3.346" Dia (85.00mm) | 3.346" Dia (85.00mm) | 3.346" Dia (85.00mm) |
| Height - Seated (Max) | 2.402" (61.00mm) | 2.992" (76.00mm) | 2.992" (76.00mm) |
| Termination | Threaded, Female | Threaded, Female | Threaded, Female |
| Lead Spacing | 1.248" (31.70mm) | 1.248" (31.70mm) | 1.248" (31.70mm) |
| Applications | DC Link, DC Filtering | DC Link, DC Filtering | DC Link, DC Filtering |
| Ratings | - | - | - |
| Features | Long Life | Long Life | Long Life |
