KEMET-C44UJGT6425A7SK - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	425 µF
Tolerance:	±10%
Voltage Rating - AC:	-
Voltage Rating - DC:	700V
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	3.2 mOhms
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Chassis, Stud Mount
Package / Case:	Radial, Can
Size / Dimension:	2.992" Dia (76.00mm)
Height - Seated (Max):	5.748" (146.00mm)
Termination:	Threaded, Female
Lead Spacing:	1.248" (31.70mm)
Applications:	DC Link, DC Filtering
Ratings:	-
Features:	Long Life

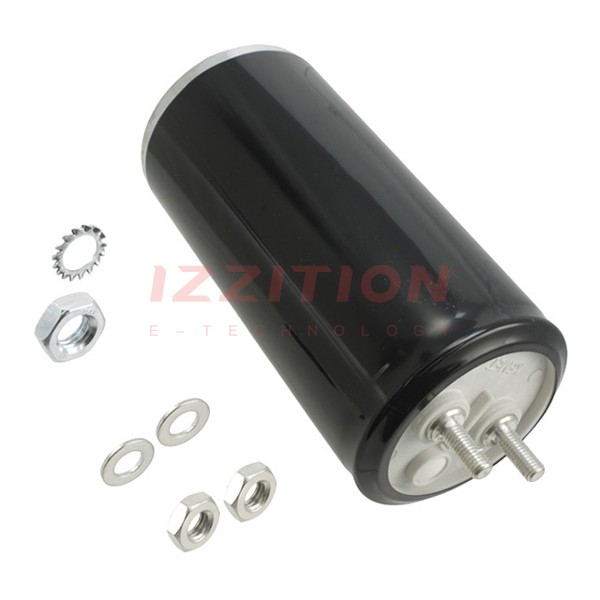

KEMET C44UJGT6425A7SK
