KEMET-C44PXGR5200RCSK - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	20 µF
Tolerance:	±10%
Voltage Rating - AC:	1000V (1kV)
Voltage Rating - DC:	2300V (2.3kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-25°C ~ 70°C
Mounting Type:	Chassis, Stud Mount
Package / Case:	Radial, Can
Size / Dimension:	2.953" Dia (75.00mm)
Height - Seated (Max):	5.591" (142.00mm)
Termination:	Threaded, Male
Lead Spacing:	1.378" (35.00mm)
Applications:	Power Factor Correction (PFC); Commutation; EMI, RFI Suppression
Ratings:	-
Features:	Long Life

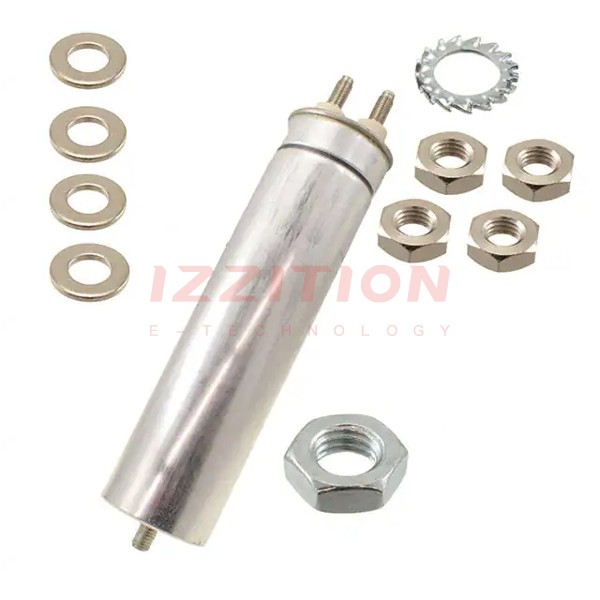

KEMET C44PXGR5200RCSK
