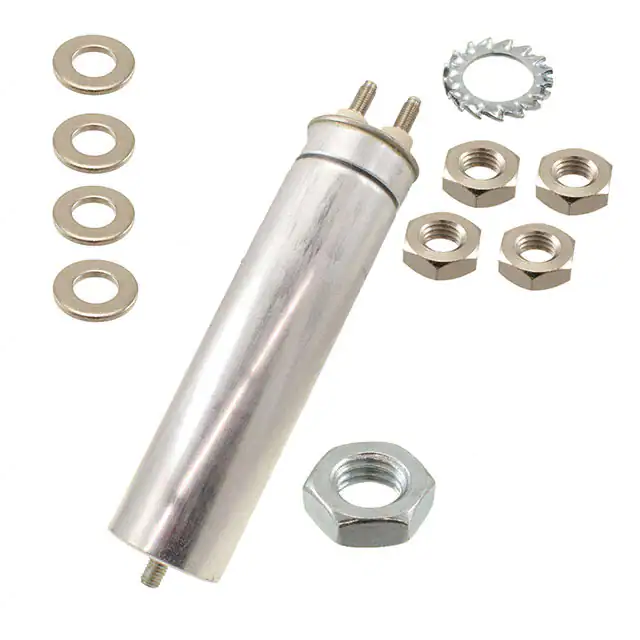

| Part Number | C44PMGR5600RBSJ | C44PMGR5600RASJ |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 60 µF | 60 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 480V | 480V |
| Voltage Rating - DC | 1100V (1.1kV) | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 2.559" Dia (65.00mm) | 2.953" Dia (75.00mm) |
| Height - Seated (Max) | 5.866" (149.00mm) | 4.685" (119.00mm) |
| Termination | Threaded, Male | Threaded, Male |
| Lead Spacing | 1.102" (28.00mm) | 1.378" (35.00mm) |
| Applications | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression |
| Ratings | - | - |
| Features | Long Life | Long Life |
