Please send RFQ , we will respond immediately.

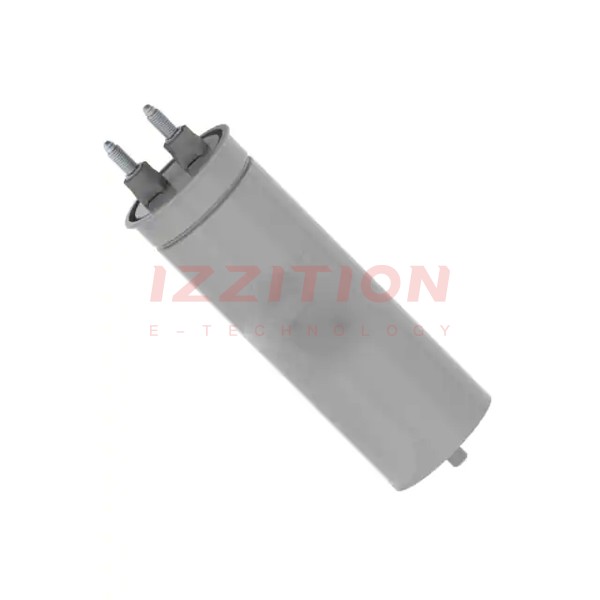

| Part Number | C44PLGR6400ZASJ | C44PLGR6500ZASJ | C44PLGR6200ZASJ | C44PLGR6300ZASJ | C44PLGR6400RASJ |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Capacitance | 400 µF | 500 µF | 200 µF | 300 µF | 400 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 330V | 330V | 330V | 330V | 330V |
| Voltage Rating - DC | 700V | 700V | 700V | 700V | 700V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 2 MOhms | 1.8 mOhms | 2.8 mOhms | 2.3 mOhms | - |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C |
| Mounting Type | Chassis Mount | Chassis, Stud Mount | Chassis Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 2.559" Dia (65.00mm) | 2.953" Dia (75.00mm) | 2.559" Dia (65.00mm) | 2.559" Dia (65.00mm) | 2.953" Dia (75.00mm) |
| Height - Seated (Max) | 9.803" (249.00mm) | 9.803" (249.00mm) | 5.866" (149.00mm) | 9.803" (249.00mm) | 9.803" (249.00mm) |
| Termination | Threaded, Male | Threaded, Male | Threaded, Male | Threaded, Male | Threaded, Male |
| Lead Spacing | 1.102" (28.00mm) | 1.378" (35.00mm) | 1.102" (28.00mm) | 1.102" (28.00mm) | 1.378" (35.00mm) |
| Applications | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression |
| Ratings | - | - | - | - | - |
| Features | Long Life | Long Life | Long Life | Long Life | Long Life |
