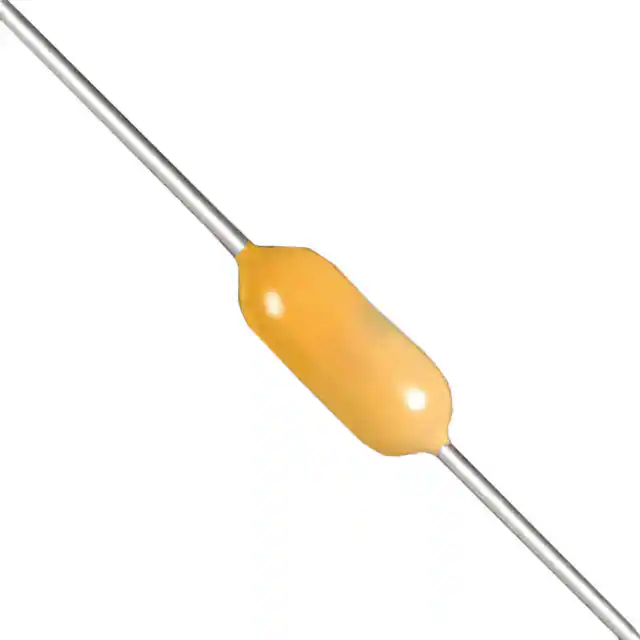

| Part Number | C420C682G2G5TA | C420C682G3G5TA | C420C682G5G5TA | C420C682K2G5TA | C420C682J2G5TA | C420C682GAG5TA | C420C622G2G5TA | C420C681G2G5TA | C420C682F2G5TA | C420C682G1G5TA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 6800 pF | 6800 pF | 6800 pF | 6800 pF | 6800 pF | 6800 pF | 6200 pF | 680 pF | 6800 pF | 6800 pF |
| Tolerance | ±2% | ±2% | ±2% | ±10% | ±5% | ±2% | ±2% | ±2% | ±1% | ±2% |
| Voltage - Rated | 200V | 25V | 50V | 200V | 200V | 250V | 200V | 200V | 200V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
