KEMET-C420C511KAG5TA - Ceramic Capacitors Product Specifications and Latest Quotes

Part Number	C420C511KAG5TA	C420C561KAG5TA	C420C512KAG5TA	C420C511FAG5TA	C420C511GAG5TA	C420C511JAG5TA	C420C511K2G5TA	C420C511K3G5TA
Manufacturer	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Capacitance	510 pF	560 pF	5100 pF	510 pF	510 pF	510 pF	510 pF	510 pF
Tolerance	±10%	±10%	±10%	±1%	±2%	±5%	±10%	±10%
Voltage - Rated	250V	250V	250V	250V	250V	250V	200V	25V
Temperature Coefficient	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL
Ratings	-	-	-	-	-	-	-	-
Applications	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Failure Rate	-	-	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Size / Dimension	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)	0.100" Dia x 0.200" L (2.54mm x 5.08mm)
Height - Seated (Max)	-	-	-	-	-	-	-	-
Thickness (Max)	-	-	-	-	-	-	-	-
Lead Spacing	-	-	-	-	-	-	-	-
Lead Style	Straight	Straight	Straight	Straight	Straight	Straight	Straight	Straight

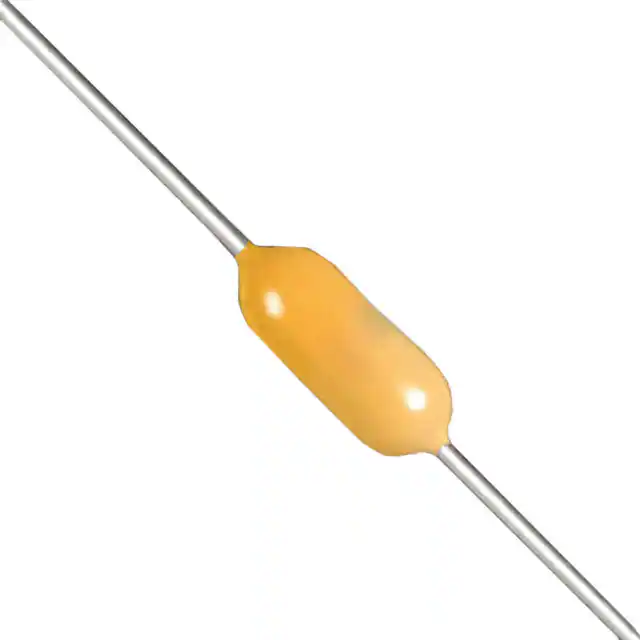

KEMET C420C511KAG5TA
