Please send RFQ , we will respond immediately.

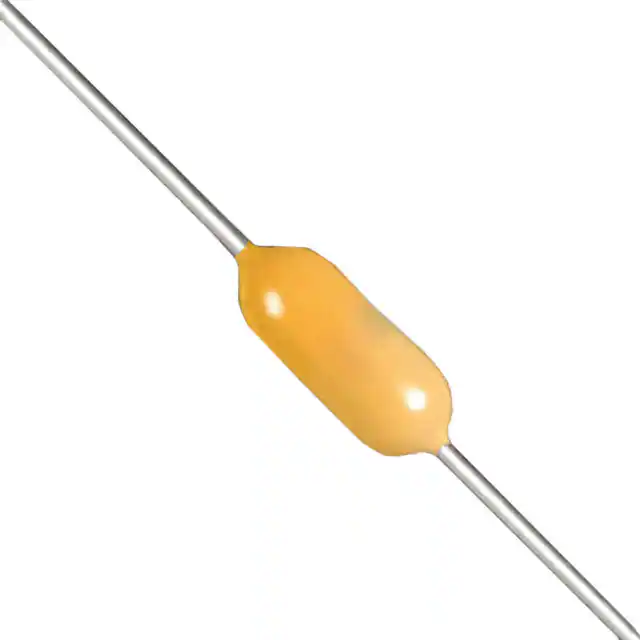

| Part Number | C420C152J3G5TA7200 | C420C152J5G5TA7200 | C420C152K3G5TA7200 | C420C152JAG5TA7200 | C420C162J3G5TA7200 | C420C153J3G5TA7200 | C420C122J3G5TA7200 | C420C132J3G5TA7200 | C420C152F3G5TA7200 | C420C152G3G5TA7200 | C420C152J1G5TA7200 | C420C152J2G5TA7200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1500 pF | 1500 pF | 1500 pF | 1500 pF | 1600 pF | 0.015 µF | 1200 pF | 1300 pF | 1500 pF | 1500 pF | 1500 pF | 1500 pF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±2% | ±5% | ±5% |
| Voltage - Rated | 25V | 50V | 25V | 250V | 25V | 25V | 25V | 25V | 25V | 25V | 100V | 200V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.260" L (2.54mm x 6.60mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | 0.100" Dia x 0.260" L (2.54mm x 6.60mm) | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
