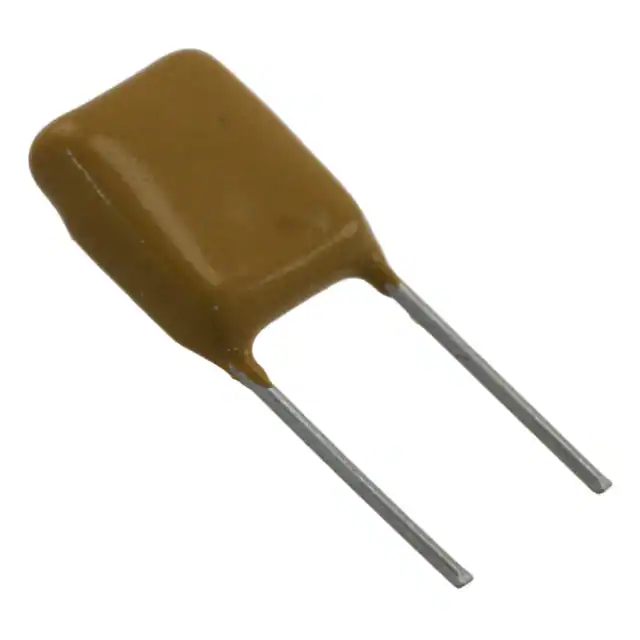

| Part Number | C340C473J2G5TA | C340C473J1G5TA | C340C473J2G5CA |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Obsolete |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage - Rated | 200V | 100V | 200V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.290" L x 0.160" W (7.36mm x 4.07mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.494" (12.54mm) | 0.500" (12.70mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Straight | Straight | Straight |
