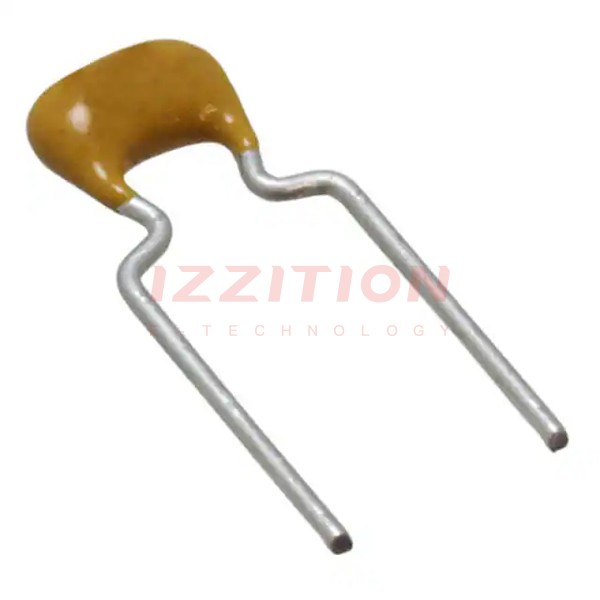

| Part Number | C333C474K5R5TA | C333C474KAR5TA | C333C474K5G5TA |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.47 µF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 250V | 50V |
| Temperature Coefficient | X7R | X7R | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | Low ESL |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) |
| Height - Seated (Max) | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Lead Style | Formed Leads - Kinked | Formed Leads - Kinked | Formed Leads - Kinked |
