Please send RFQ , we will respond immediately.

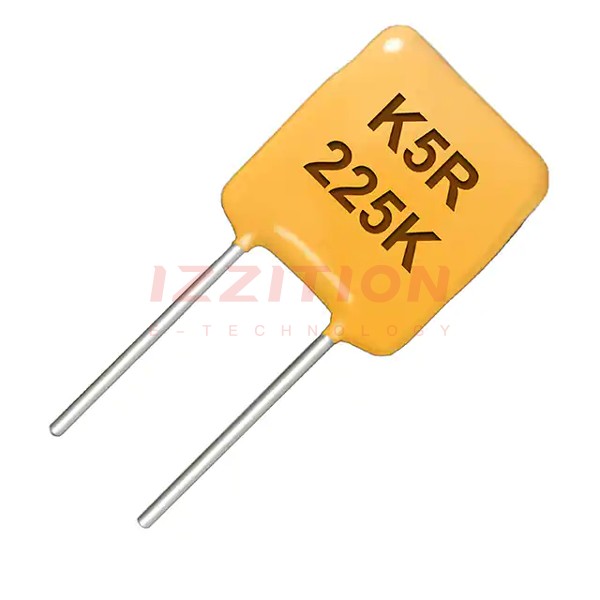

| Part Number | C331C563FAG5TA | C331C563KAG5TA | C331C563JAG5TA | C331C563GAG5TA | C331C561FAG5TA | C331C562FAG5TA | C331C563F1G5TA | C331C563F2G5TA | C331C563F5G5TA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 560 pF | 5600 pF | 0.056 µF | 0.056 µF | 0.056 µF |
| Tolerance | ±1% | ±10% | ±5% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Voltage - Rated | 250V | 250V | 250V | 250V | 250V | 250V | 100V | 200V | 50V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) |
| Height - Seated (Max) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.420" (10.66mm) | 0.360" (9.14mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Lead Style | Straight | Straight | Straight | Straight | Formed Leads | Formed Leads | Formed Leads | Straight | Formed Leads |
