Please send RFQ , we will respond immediately.

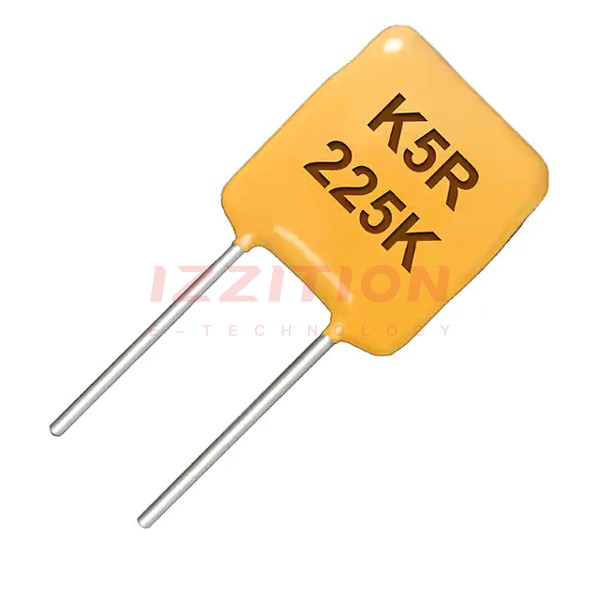

| Part Number | C331C152JAG5TA | C331C152KAG5TA | C331C162JAG5TA | C331C182JAG5TA | C331C153JAG5TA | C331C102JAG5TA | C331C112JAG5TA | C331C122JAG5TA | C331C132JAG5TA | C331C152FAG5TA | C331C152GAG5TA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1500 pF | 1500 pF | 1600 pF | 1800 pF | 0.015 µF | 1000 pF | 1100 pF | 1200 pF | 1300 pF | 1500 pF | 1500 pF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±2% |
| Voltage - Rated | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.280" L x 0.160" W (7.11mm x 4.07mm) |
| Height - Seated (Max) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) | 0.360" (9.14mm) |
| Thickness (Max) | - | - | - | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Lead Style | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads | Formed Leads |
