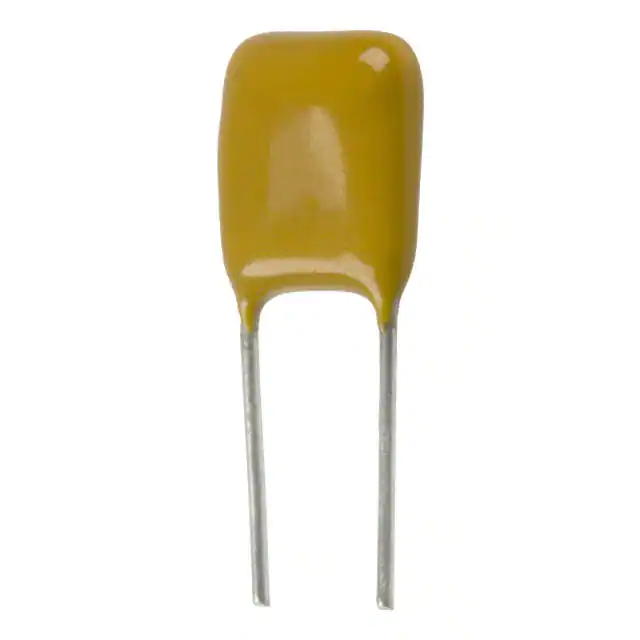

| Part Number | C320C473M1R5TA | C320C473M1U5TA | C320C473M5R5TA | C320C473K1R5TA |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% |
| Voltage - Rated | 100V | 100V | 50V | 100V |
| Temperature Coefficient | X7R | Z5U | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | 10°C ~ 85°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | Bypass, Decoupling | General Purpose | Bypass, Decoupling | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" L x 0.125" W (5.08mm x 3.18mm) |
| Height - Seated (Max) | 0.290" (7.36mm) | 0.290" (7.36mm) | 0.290" (7.36mm) | 0.290" (7.36mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Lead Style | Straight | Straight | Straight | Straight |
