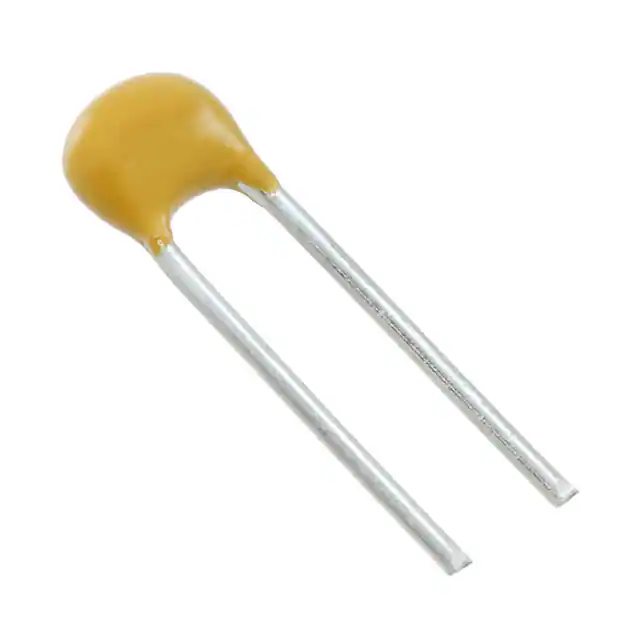

| Part Number | C315C474K5R5TA7303 | C315C471K5R5TA7303 | C315C472K5R5TA7303 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 470 pF | 4700 pF |
| Tolerance | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 50V |
| Temperature Coefficient | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | Bypass, Decoupling | Bypass, Decoupling |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) |
| Height - Seated (Max) | 0.183" (4.66mm) | 0.183" (4.66mm) | 0.183" (4.66mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Lead Style | Straight | Straight | Straight |
