KEMET-C315C471K2G5TA7301 - Ceramic Capacitors Product Specifications and Latest Quotes

Part Number	C315C471K2G5TA7301	C315C471K2R5TA7301	C315C471K3G5TA7301	C315C471KAG5TA7301	C315C472K2G5TA7301	C315C470K2G5TA7301
Manufacturer	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET
Product Status	Active	Active	Active	Active	Active	Active
Capacitance	470 pF	470 pF	470 pF	470 pF	4700 pF	47 pF
Tolerance	±10%	±10%	±10%	±10%	±10%	±10%
Voltage - Rated	200V	200V	25V	250V	200V	200V
Temperature Coefficient	C0G, NP0	X7R	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	Low ESL	-	Low ESL	Low ESL	Low ESL	Low ESL
Ratings	-	-	-	-	-	-
Applications	General Purpose	Bypass, Decoupling	General Purpose	General Purpose	General Purpose	General Purpose
Failure Rate	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial
Size / Dimension	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)
Height - Seated (Max)	0.183" (4.66mm)	0.270" (6.85mm)	0.183" (4.66mm)	0.183" (4.66mm)	0.183" (4.66mm)	0.183" (4.66mm)
Thickness (Max)	-	-	-	-	-	-
Lead Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Lead Style	Straight	Straight	Straight	Straight	Straight	Straight

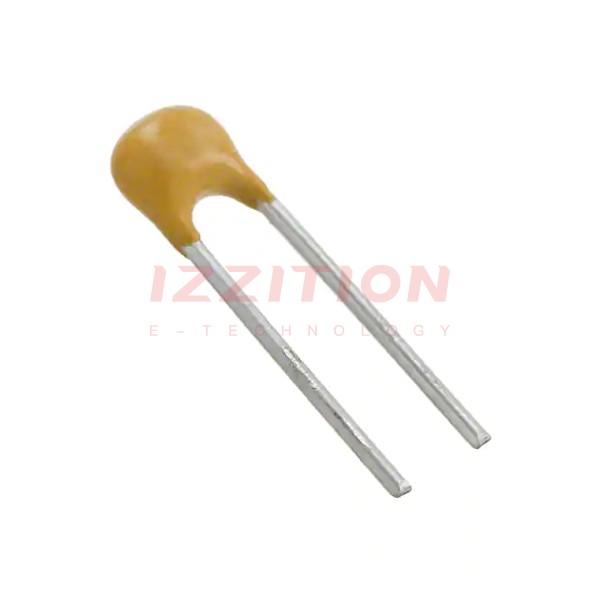

KEMET C315C471K2G5TA7301
