KEMET-C315C330J1G5TA7301 - Ceramic Capacitors Product Specifications and Latest Quotes

Part Number	C315C330J1G5TA7301	C315C330J1G5TA7303	C315C330J3G5TA7301	C315C330JAG5TA7301	C315C330J2G5TA7301	C315C332J1G5TA7301
Manufacturer	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET
Product Status	Active	Active	Active	Active	Active	Active
Capacitance	33 pF	33 pF	33 pF	33 pF	33 pF	3300 pF
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Voltage - Rated	100V	100V	25V	250V	200V	100V
Temperature Coefficient	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0	C0G, NP0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Features	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL	Low ESL
Ratings	-	-	-	-	-	-
Applications	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Failure Rate	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial	Radial	Radial	Radial	Radial	Radial
Size / Dimension	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)	0.150" L x 0.100" W (3.81mm x 2.54mm)
Height - Seated (Max)	0.183" (4.66mm)	-	0.183" (4.66mm)	0.183" (4.66mm)	0.183" (4.66mm)	0.183" (4.66mm)
Thickness (Max)	-	0.183" (4.66mm)	-	-	-	-
Lead Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Lead Style	Straight	Straight	Straight	Straight	Straight	Straight

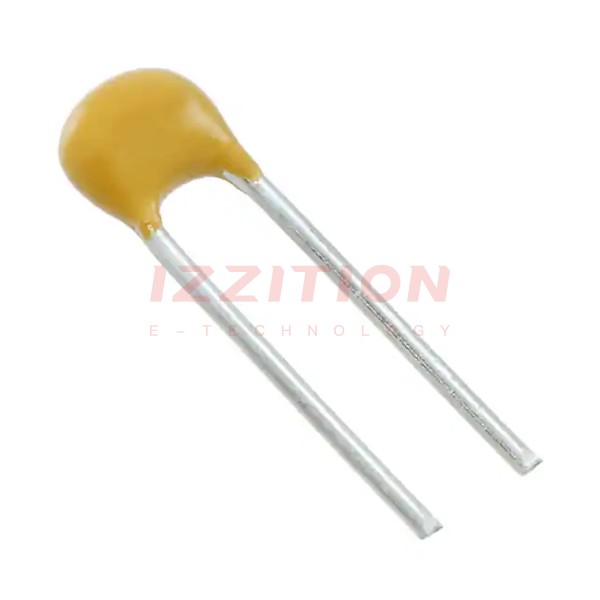

KEMET C315C330J1G5TA7301
