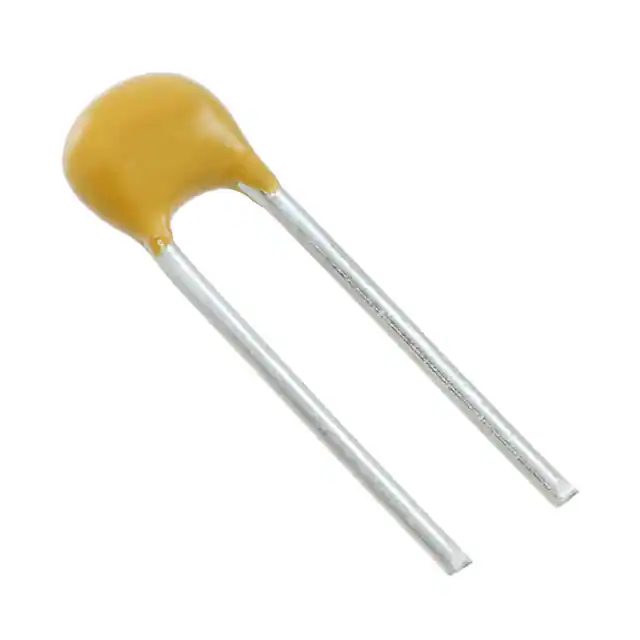

| Part Number | C315C180J2G5TA7301 | C315C180J3G5TA7301 | C315C180JAG5TA7301 | C315C182J2G5TA7301 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 18 pF | 18 pF | 18 pF | 1800 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 200V | 25V | 250V | 200V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) |
| Height - Seated (Max) | 0.183" (4.66mm) | 0.183" (4.66mm) | 0.183" (4.66mm) | 0.183" (4.66mm) |
| Thickness (Max) | - | - | - | - |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Lead Style | Straight | Straight | Straight | Straight |
