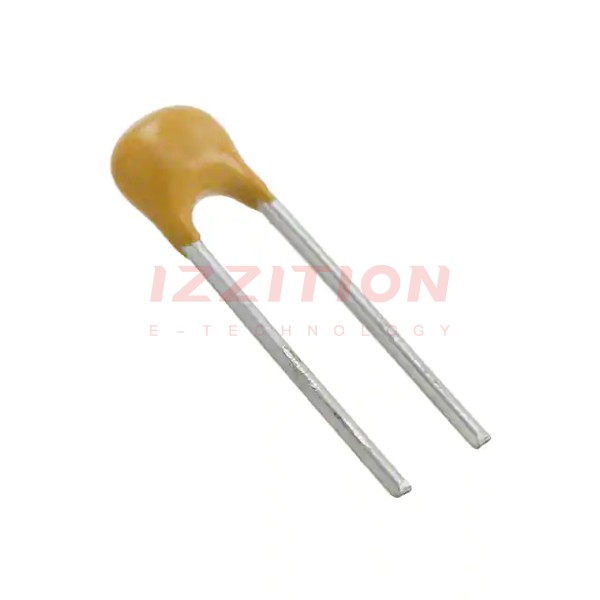

| Part Number | C315C104M5U5TA7303 | C315C103M5U5TA7303 | C315C104M5U5TA7301 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.1 µF | 10000 pF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50V | 50V | 50V |
| Temperature Coefficient | Z5U | Z5U | Z5U |
| Operating Temperature | 10°C ~ 85°C | 10°C ~ 85°C | 10°C ~ 85°C |
| Features | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.150" L x 0.100" W (3.81mm x 2.54mm) |
| Height - Seated (Max) | 0.183" (4.66mm) | 0.183" (4.66mm) | 0.183" (4.66mm) |
| Thickness (Max) | - | - | - |
| Lead Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Lead Style | Straight | Straight | Straight |
