Please send RFQ , we will respond immediately.

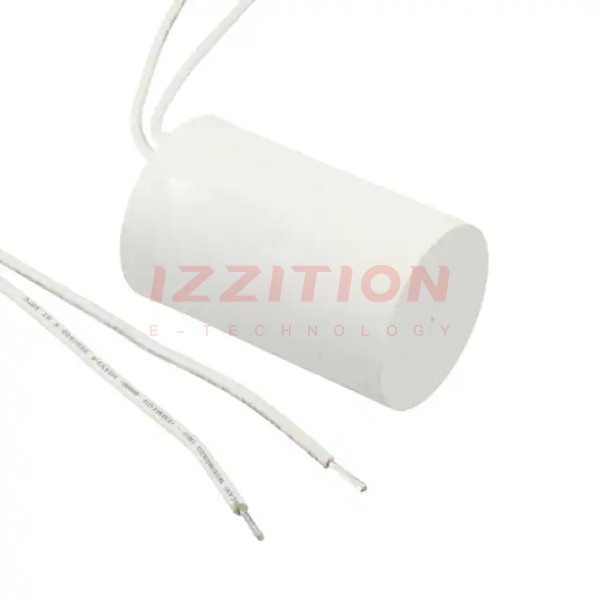

| Part Number | C276CCF5200LG0J | C276CCF5250LG0J | C276CCF5300LG0J | C276CCF5400LG0J | C276CCF4200LG0J | C276CCF5100LG0J |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 20 µF | 25 µF | 30 µF | 40 µF | 2 µF | 10 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V | 470V | 470V | 470V | 470V |
| Voltage Rating - DC | - | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.772" Dia (45.00mm) | 1.772" Dia (45.00mm) | 1.772" Dia (45.00mm) | 0.984" Dia (25.00mm) | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.894" (73.50mm) | 2.894" (73.50mm) | 2.894" (73.50mm) | 3.839" (97.50mm) | 2.382" (60.50mm) | 2.382" (60.50mm) |
| Termination | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Lead Spacing | - | - | - | - | - | - |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
