Please send RFQ , we will respond immediately.

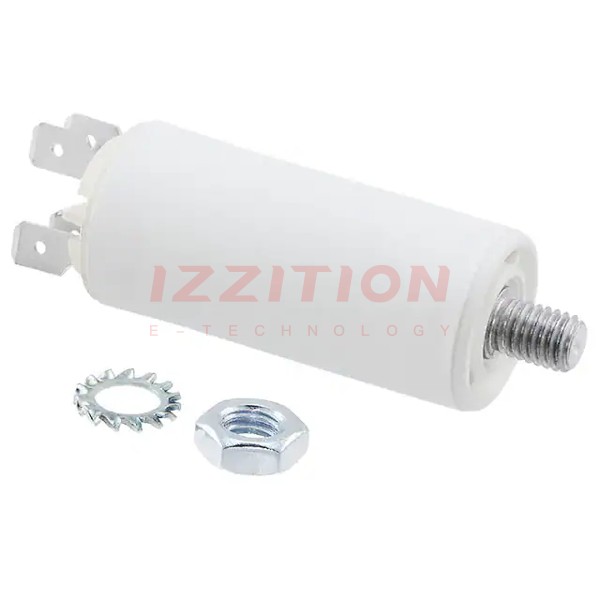

| Part Number | C276CC24500AA1J | C276CC24500AA0J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 5 µF | 5 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 0.984" Dia (25.00mm) | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.362" (60.00mm) | 2.303" (58.50mm) |
| Termination | Quick Connect, Disconnect | Quick Connect - 0.250" (6.3mm) |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - |
| Features | - | - |
