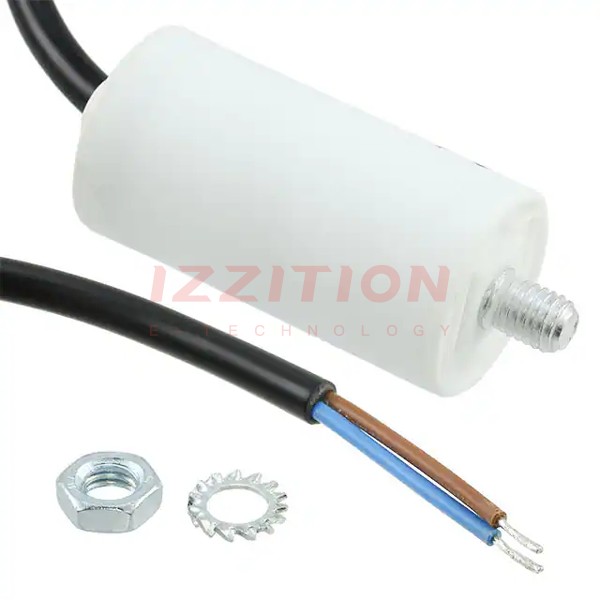

| Part Number | C274ACF5120WA0J | C274ACF5150WA0J |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 12 µF | 15 µF |
| Tolerance | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can |
| Size / Dimension | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.894" (73.50mm) | 2.894" (73.50mm) |
| Termination | Wire Leads | Wire Leads |
| Lead Spacing | - | - |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - |
| Features | - | - |
