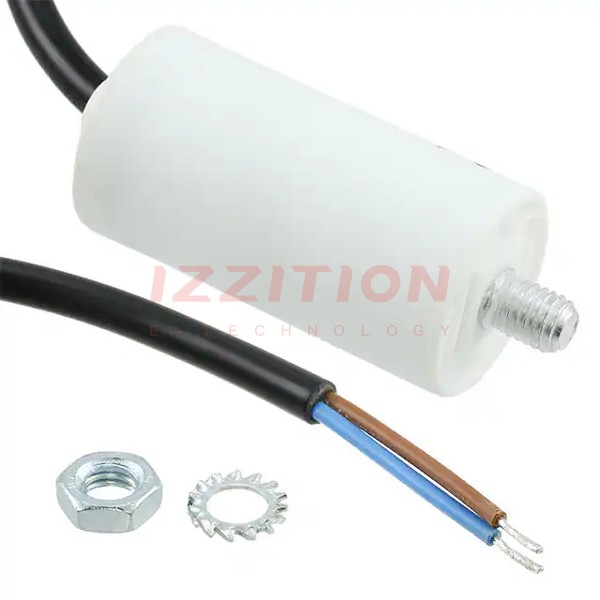

| Part Number | C274ACF4200LF0J | C274ACF4400LF0J | C274ACF4300LF0J |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 2 µF | 4 µF | 3 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V | 470V |
| Voltage Rating - DC | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 0.984" Dia (25.00mm) | - | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) | - | 2.382" (60.50mm) |
| Termination | Wire Leads | Wire Leads | Wire Leads |
| Lead Spacing | - | - | - |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - | - |
| Features | - | - | - |
