Please send RFQ , we will respond immediately.

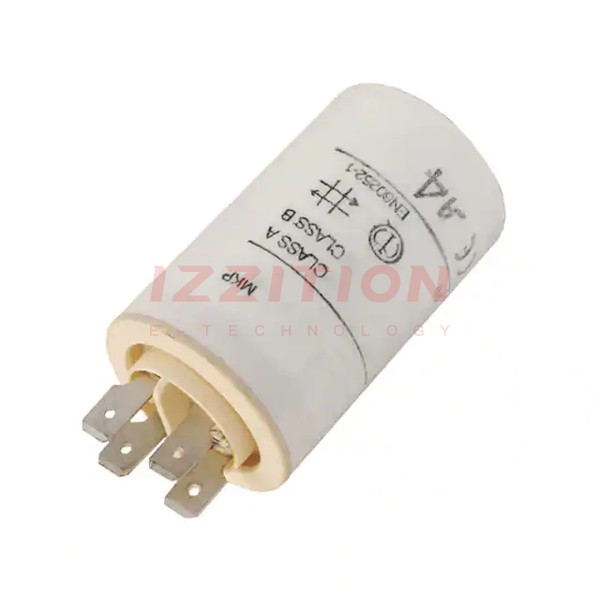

| Part Number | C274AC35150SA0J | C274AC35350SA0J | C274AC35180SA0J | C274AC35100SA0J | C274AC35120SA0J | C274AC35150AA0J |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 15 µF | 35 µF | 18 µF | 10 µF | 12 µF | 15 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 470V | 470V | 470V | 470V | 470V | 470V |
| Voltage Rating - DC | - | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Mounting Type | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount | Chassis, Stud Mount |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Size / Dimension | 1.575" Dia (40.00mm) | 1.969" Dia (50.00mm) | - | 1.378" Dia (35.00mm) | 1.378" Dia (35.00mm) | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.972" (75.50mm) | 3.740" (95.00mm) | - | 2.972" (75.50mm) | 2.972" (75.50mm) | 2.972" (75.50mm) |
| Termination | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Lead Spacing | - | - | - | - | - | 0.528" (13.40mm) |
| Applications | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start | Motor Run; Motor Start |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
