Please send RFQ , we will respond immediately.

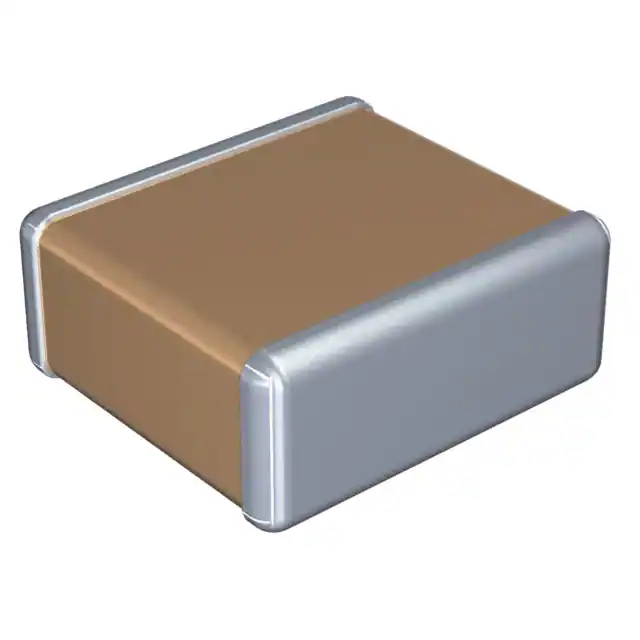

| Part Number | C2225C683KFRAC7800 | C2225X683KFRAC7800 | C2225C183KFRAC7800 | C2225C683KDRAC7800 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.068 µF | 0.068 µF | 0.018 µF | 0.068 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1500V (1.5kV) | 1500V (1.5kV) | 1500V (1.5kV) | 1000V (1kV) |
| Temperature Coefficient | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, High Voltage | Low ESL, Soft Termination, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage |
| Ratings | - | - | - | - |
| Applications | General Purpose | Boardflex Sensitive | General Purpose | General Purpose |
| Failure Rate | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) |
| Size / Dimension | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) |
| Height - Seated (Max) | - | - | - | - |
| Thickness (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.061" (1.55mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - |
| Lead Style | - | - | - | - |
