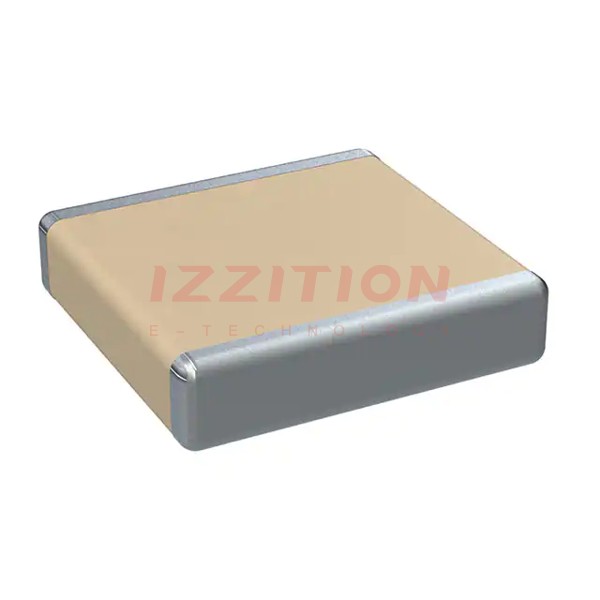

| Part Number | C2225C223J5GAC7800 | C2225C223K5GAC7800 | C2225C273J5GAC7800 | C2225C123J5GAC7800 | C2225C223F5GAC7800 | C2225C223G5GAC7800 | C2225C223J1GAC7800 |
|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.022 µF | 0.022 µF | 0.027 µF | 0.012 µF | 0.022 µF | 0.022 µF | 0.022 µF |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±1% | ±2% | ±5% |
| Voltage - Rated | 50V | 50V | 50V | 50V | 50V | 50V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) |
| Size / Dimension | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
| Thickness (Max) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) | 0.061" (1.55mm) |
| Lead Spacing | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - |
