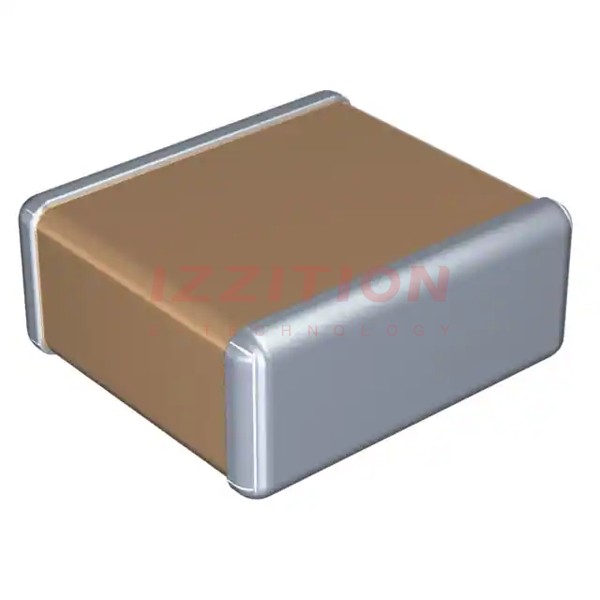

| Part Number | C2225C104KDRAC7800 | C2225C104KFRAC7800 | C2225C154KDRAC7800 | C2225C104K1RAC7800 | C2225C104K2RAC7800 | C2225C104K5RAC7800 | C2225C104KBRAC7800 | C2225C104KCRAC7800 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.1 µF | 0.1 µF | 0.15 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF | 0.1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1500V (1.5kV) | 1000V (1kV) | 100V | 200V | 50V | 630V | 500V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage | - | - | - | Low ESL, High Voltage | Low ESL, High Voltage |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | Bypass, Decoupling | Bypass, Decoupling | Bypass, Decoupling | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) | 2225 (5763 Metric) |
| Size / Dimension | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | 0.220" L x 0.252" W (5.60mm x 6.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.087" (2.20mm) | 0.106" (2.70mm) | 0.106" (2.70mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.087" (2.20mm) | 0.061" (1.55mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - |
