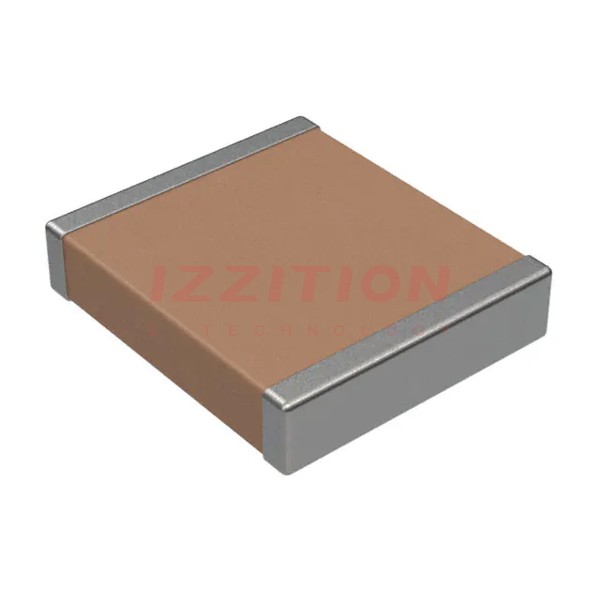

| Part Number | C2220X105K5RAC7800 | C2220X106K5RAC7800 | C2220X105KARAC7800 | C2220X105K1RAC7800 | C2220X105K2RAC7800 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 10 µF | 1 µF | 1 µF | 1 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 250V | 100V | 200V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Soft Termination | Soft Termination | Soft Termination | Soft Termination | Soft Termination |
| Ratings | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) | 2220 (5750 Metric) |
| Size / Dimension | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | 0.232" L x 0.197" W (5.90mm x 5.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.049" (1.25mm) | 0.100" (2.55mm) | 0.065" (1.65mm) | 0.065" (1.65mm) | 0.065" (1.65mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
