Please send RFQ , we will respond immediately.

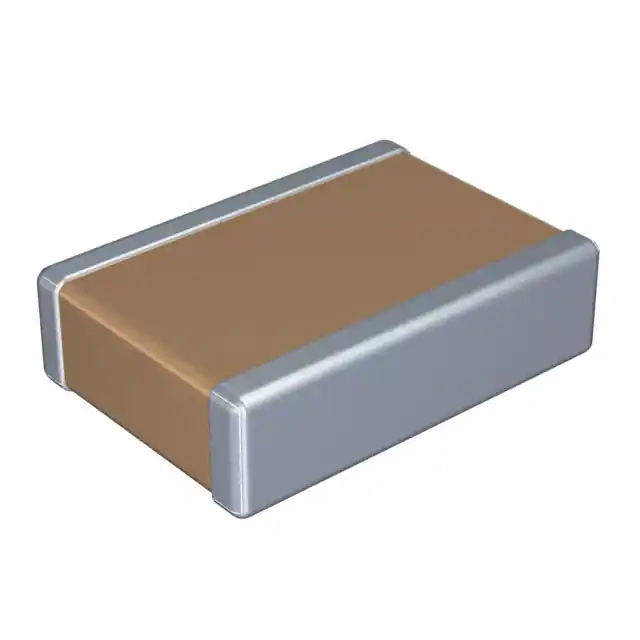

| Part Number | C1825C681KZGAC7800 | C1825C681MZGAC7800 | C1825C621KZGAC7800 | C1825C681FZGAC7800 | C1825C681GZGAC7800 | C1825C681JZGAC7800 |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 680 pF | 680 pF | 620 pF | 680 pF | 680 pF | 680 pF |
| Tolerance | ±10% | ±20% | ±10% | ±1% | ±2% | ±5% |
| Voltage - Rated | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) | 2500V (2.5kV) |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage | Low ESL, High Voltage |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1825 (4564 Metric) | 1825 (4564 Metric) | 1825 (4564 Metric) | 1825 (4564 Metric) | 1825 (4564 Metric) | 1825 (4564 Metric) |
| Size / Dimension | 0.177" L x 0.252" W (4.50mm x 6.40mm) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | 0.177" L x 0.252" W (4.50mm x 6.40mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.061" (1.55mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
