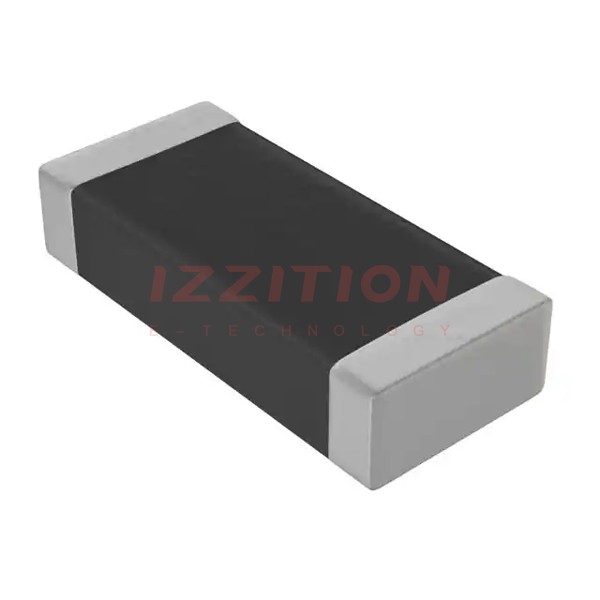

| Part Number | C1808X683KDRAC7800 | C1808C683KDRAC7800 | C1808V683KDRAC7800 | C1808W683KDRAC7800 | C1808X683KCRAC7800 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.068 µF | 0.068 µF | 0.068 µF | 0.068 µF | 0.068 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 1000V (1kV) | 500V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, Soft Termination, High Voltage | Low ESL, High Voltage | High Voltage, ArcShield™ | Soft Termination, High Voltage, ArcShield™ | Low ESL, Soft Termination, High Voltage |
| Ratings | - | - | - | - | - |
| Applications | Boardflex Sensitive | General Purpose | General Purpose | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1808 (4520 Metric) | 1808 (4520 Metric) | 1808 (4520 Metric) | 1808 (4520 Metric) | 1808 (4520 Metric) |
| Size / Dimension | 0.185" L x 0.079" W (4.70mm x 2.00mm) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | 0.185" L x 0.079" W (4.70mm x 2.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.085" (2.15mm) | 0.085" (2.15mm) | 0.085" (2.15mm) | 0.085" (2.15mm) | 0.061" (1.55mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
