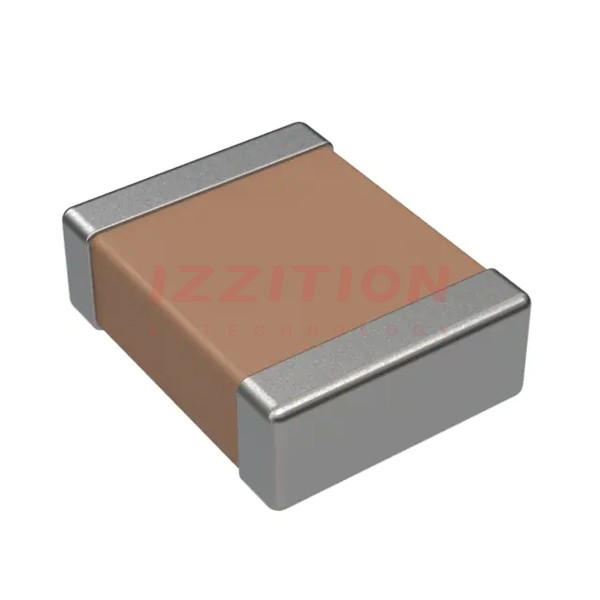

| Part Number | C1210X224K5RAC7800 | C1210X225K5RAC7800 | C1210X224K1RAC7800 | C1210X224K2RAC7800 | C1210X224K5JAC7800 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 2.2 µF | 0.22 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 50V | 50V | 100V | 200V | 50V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | U2J |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Soft Termination | Soft Termination | Soft Termination | Soft Termination | Low ESL, Soft Termination, Low Dissipation Factor |
| Ratings | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.039" (1.00mm) | 0.055" (1.40mm) | 0.041" (1.05mm) | 0.091" (2.30mm) | 0.035" (0.88mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
