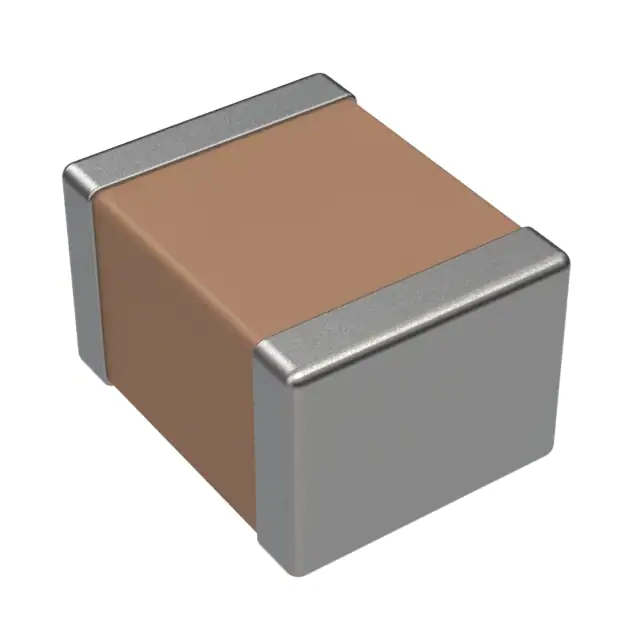

| Part Number | C1210X184M4HAC7800 | C1210X184M8HAC7800 | C1210X184M4JAC7800 | C1210X183M4HAC7800 | C1210X184F4HAC7800 | C1210X184G4HAC7800 | C1210X184J4HAC7800 | C1210X184K4HAC7800 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.18 µF | 0.18 µF | 0.18 µF | 0.018 µF | 0.18 µF | 0.18 µF | 0.18 µF | 0.18 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±1% | ±2% | ±5% | ±10% |
| Voltage - Rated | 16V | 10V | 16V | 16V | 16V | 16V | 16V | 16V |
| Temperature Coefficient | X8R | X8R | U2J | X8R | X8R | X8R | X8R | X8R |
| Operating Temperature | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
| Features | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, High Temperature | Low ESL, Soft Termination, High Temperature |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.035" (0.88mm) | 0.039" (0.98mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) | 0.081" (2.05mm) |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - |
