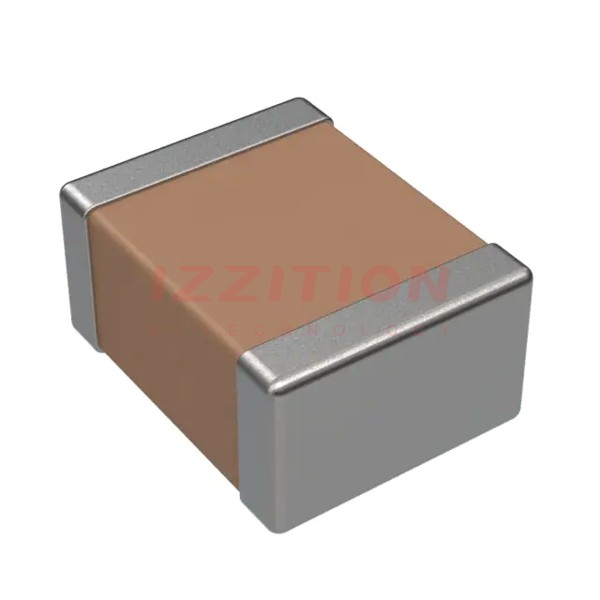

| Part Number | C1210X103KCRAC7800 | C1210X104KCRAC7800 | C1210X103KDRAC7800 | C1210X103KFRAC7800 | C1210X103K2RAC7800 | C1210X103KARAC7800 |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | 0.1 µF | 10000 pF | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage - Rated | 500V | 500V | 1000V (1kV) | 1500V (1.5kV) | 200V | 250V |
| Temperature Coefficient | X7R | X7R | X7R | X7R | X7R | X7R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, Soft Termination, High Voltage | Low ESL, Soft Termination, High Voltage | Low ESL, Soft Termination, High Voltage | Low ESL, Soft Termination, High Voltage | Soft Termination | Soft Termination |
| Ratings | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | 0.130" L x 0.102" W (3.30mm x 2.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Thickness (Max) | 0.061" (1.55mm) | 0.091" (2.30mm) | 0.061" (1.55mm) | 0.091" (2.30mm) | 0.039" (0.98mm) | 0.035" (0.88mm) |
| Lead Spacing | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - |
