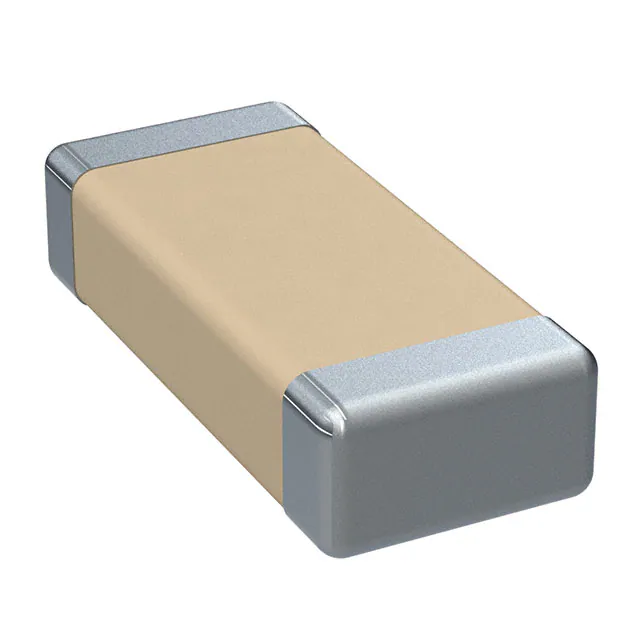

| Part Number | C1206X563M8JAC7800 | C1206X563F8JAC7800 | C1206X563G8JAC7800 | C1206X563J8JAC7800 | C1206X563K8JAC7800 | C1206X563M3JAC7800 | C1206X563M4JAC7800 | C1206X563M5JAC7800 | C1206X563M8HAC7800 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF | 0.056 µF |
| Tolerance | ±20% | ±1% | ±2% | ±5% | ±10% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10V | 10V | 10V | 10V | 10V | 25V | 16V | 50V | 10V |
| Temperature Coefficient | U2J | U2J | U2J | U2J | U2J | U2J | U2J | U2J | X8R |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C |
| Features | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, High Temperature |
| Ratings | - | - | - | - | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | 0.130" L x 0.063" W (3.30mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.047" (1.20mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - |
