Please send RFQ , we will respond immediately.

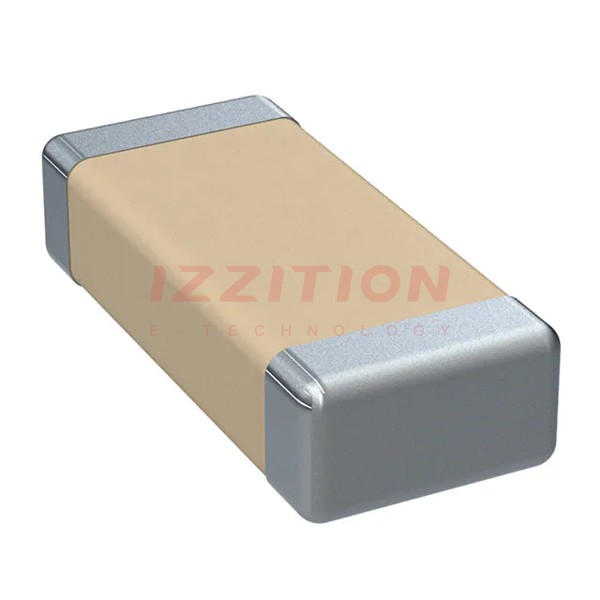

| Part Number | C1206C560J1GAC7800 | C1206C560J5GAC7800 | C1206C560JCGAC7800 | C1206C561J1GAC7800 | C1206C560JDGAC7800 | C1206C560J1HAC7800 | C1206C560K1GAC7800 | C1206C560J1GAL7800 | C1206C560J2GAC7800 | C1206C560JGGAC7800 | C1206C560F1GAC7800 | C1206C560G1GAC7800 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 56 pF | 56 pF | 56 pF | 560 pF | 56 pF | 56 pF | 56 pF | 56 pF | 56 pF | 56 pF | 56 pF | 56 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±10% | ±5% | ±5% | ±5% | ±1% | ±2% |
| Voltage - Rated | 100V | 50V | 500V | 100V | 1000V (1kV) | 100V | 100V | 100V | 200V | 2000V (2kV) | 100V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | X8R | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL | Low ESL | Low ESL, High Voltage | Low ESL | Low ESL, High Voltage | Low ESL, High Temperature | Low ESL | Low ESL | Low ESL | Low ESL, High Voltage | Low ESL | Low ESL |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | High Reliability | General Purpose | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.053" (1.35mm) | 0.035" (0.88mm) | 0.053" (1.35mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.035" (0.88mm) | 0.069" (1.75mm) | 0.035" (0.88mm) | 0.035" (0.88mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - | - | - |
