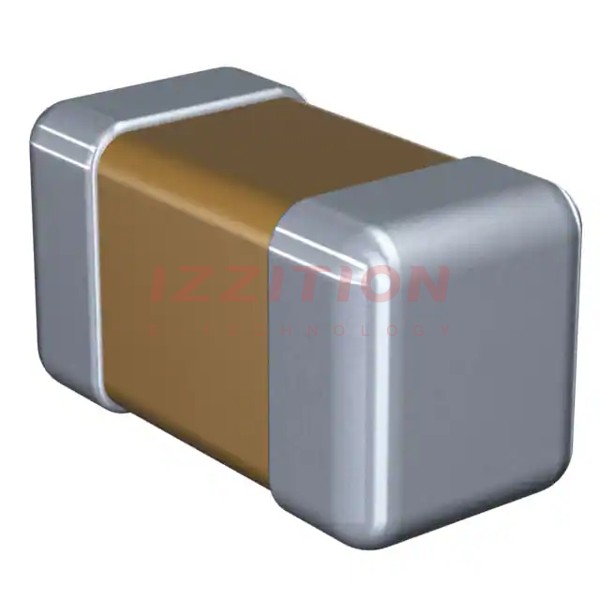

| Part Number | C0603X222J1GAC7867 | C0603X222J1GEC7867 | C0603X222J1RAC7867 | C0603X222J5GAC7867 | C0603X221J1GAC7867 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 2200 pF | 2200 pF | 2200 pF | 2200 pF | 220 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage - Rated | 100V | 100V | 100V | 50V | 100V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | X7R | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, Soft Termination | Low ESL, Soft Termination | Soft Termination | Low ESL, Soft Termination | Low ESL, Soft Termination |
| Ratings | - | - | - | - | - |
| Applications | Boardflex Sensitive | Boardflex Sensitive, ESD Protection | Boardflex Sensitive | Boardflex Sensitive | Boardflex Sensitive |
| Failure Rate | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Thickness (Max) | 0.037" (0.95mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.037" (0.95mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - |
| Lead Style | - | - | - | - | - |
