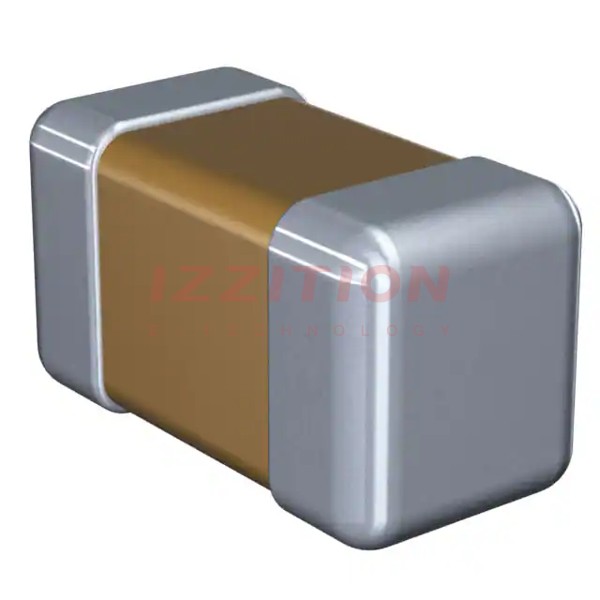

| Part Number | C0603X103J3JACAUTO | C0603X103M3JACAUTO | C0603X103K3JACAUTO | C0603X103J8JACAUTO | C0603X103J5JACAUTO | C0603X103J4JACAUTO | C0603X103J3RACAUTO | C0603X103F3JACAUTO | C0603X103G3JACAUTO | C0603X103J3GACAUTO |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF | 10000 pF |
| Tolerance | ±5% | ±20% | ±10% | ±5% | ±5% | ±5% | ±5% | ±1% | ±2% | ±5% |
| Voltage - Rated | 25V | 25V | 25V | 10V | 50V | 16V | 25V | 25V | 25V | 25V |
| Temperature Coefficient | U2J | U2J | U2J | U2J | U2J | U2J | X7R | U2J | U2J | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Soft Termination | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination |
| Ratings | - | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.037" (0.95mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - |
