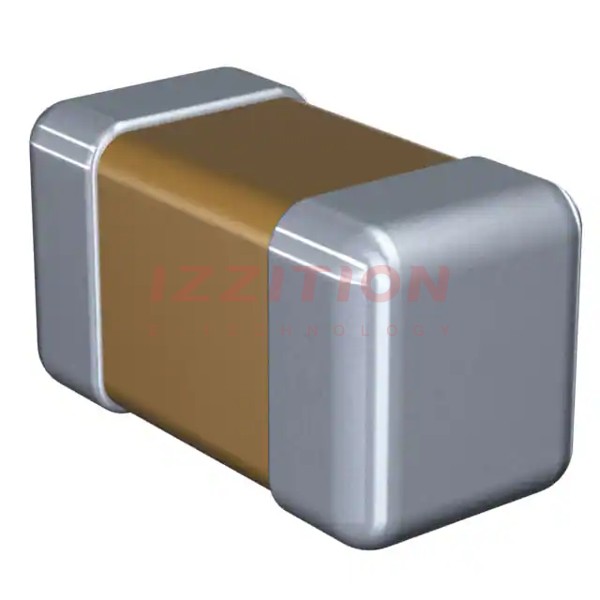

| Part Number | C0603X102J5GACAUTO | C0603X102JAGACAUTO | C0603X102J5HACAUTO | C0603X102J5RACAUTO | C0603X102J5GECAUTO | C0603X102J5JACAUTO | C0603X102F5GACAUTO | C0603X102J1GACAUTO | C0603X102J2GACAUTO | C0603X102J3GACAUTO |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF | 1000 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% | ±5% | ±5% | ±5% |
| Voltage - Rated | 50V | 250V | 50V | 50V | 50V | 50V | 50V | 100V | 200V | 25V |
| Temperature Coefficient | C0G, NP0 | C0G, NP0 | X8R | X7R | C0G, NP0 | U2J | C0G, NP0 | C0G, NP0 | C0G, NP0 | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Features | Low ESL, Soft Termination | Low ESL, Soft Termination | Low ESL, Soft Termination, High Temperature | Soft Termination | Low ESL, Soft Termination | Low ESL, Soft Termination, Low Dissipation Factor | Low ESL, Soft Termination | Low ESL, Soft Termination | Low ESL, Soft Termination | Low ESL, Soft Termination |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Applications | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive, ESD Protection | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive | Automotive, Boardflex Sensitive |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.064" L x 0.032" W (1.63mm x 0.81mm) | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Thickness (Max) | 0.034" (0.87mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.034" (0.87mm) | 0.034" (0.87mm) | 0.037" (0.95mm) | 0.037" (0.95mm) | 0.034" (0.87mm) | 0.037" (0.95mm) |
| Lead Spacing | - | - | - | - | - | - | - | - | - | - |
| Lead Style | - | - | - | - | - | - | - | - | - | - |
