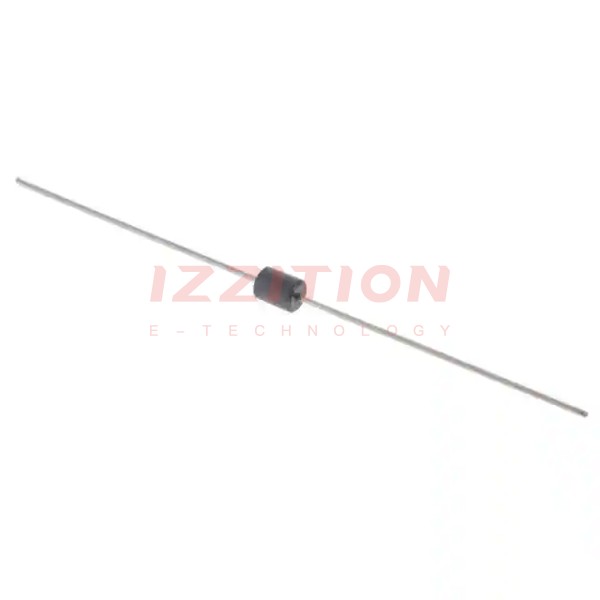

| Part Number | B-01-A | B-01-A2 | B-01-A1 | B-01-R | B-01-AT |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Filter Type | Signal Line | Signal Line | Signal Line | Signal Line | Signal Line |
| Number of Lines | 1 | 1 | 1 | 1 | 1 |
| Impedance @ Frequency | 2 Ohms @ 1 MHz | 2 Ohms @ 1 MHz | 2 Ohms @ 1 MHz | 2 Ohms @ 1 MHz | 2 Ohms @ 1 MHz |
| Current Rating (Max) | 5A | 5A | 5A | 5A | 5A |
| DC Resistance (DCR) (Max) | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Package / Case | Axial | Axial, Radial Bend | Axial, Radial Bend | Axial, Kinked Radial Bend | Axial |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Height (Max) | 0.173" (4.40mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.512" (13.00mm) | - |
| Size / Dimension | 0.134" Dia (3.40mm) | 0.134" Dia (3.40mm) | 0.134" Dia (3.40mm) | 0.134" Dia (3.40mm) | 0.134" Dia x 0.173" L (3.40mm x 4.40mm) |
| Features | - | - | - | - | - |
