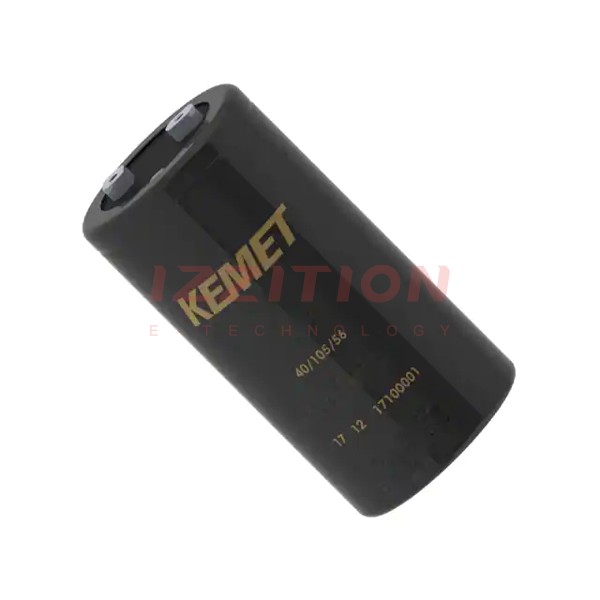

KEMET-ALS70A182LM630 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1800 µF
Tolerance:	±20%
Voltage - Rated:	630 V
ESR (Equivalent Series Resistance):	84mOhm @ 100Hz
Lifetime @ Temp.:	19000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	11 A @ 100 Hz
Ripple Current @ High Frequency:	20.5 A @ 10 kHz
Impedance:	57 mOhms
Lead Spacing:	1.122" (28.50mm)
Size / Dimension:	2.500" Dia (63.50mm)
Height - Seated (Max):	5.157" (131.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET ALS70A182LM630
