KEMET-ALS41A154NP040 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	150000 µF
Tolerance:	±20%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	5mOhm @ 100Hz
Lifetime @ Temp.:	9000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	31.3 A @ 100 Hz
Ripple Current @ High Frequency:	31.6 A @ 10 kHz
Impedance:	5 mOhms
Lead Spacing:	1.252" (31.80mm)
Size / Dimension:	3.032" Dia (77.00mm)
Height - Seated (Max):	5.827" (148.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

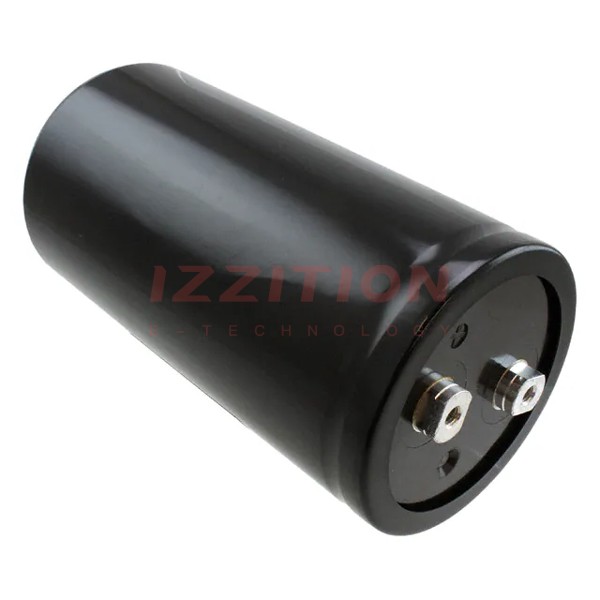

KEMET ALS41A154NP040
