KEMET-ALS40A472DF100 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	±20%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	26mOhm @ 100Hz
Lifetime @ Temp.:	6000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	8.1 A @ 100 Hz
Ripple Current @ High Frequency:	9.3 A @ 10 kHz
Impedance:	21 mOhms
Lead Spacing:	0.504" (12.80mm)
Size / Dimension:	1.417" Dia (36.00mm)
Height - Seated (Max):	4.134" (105.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

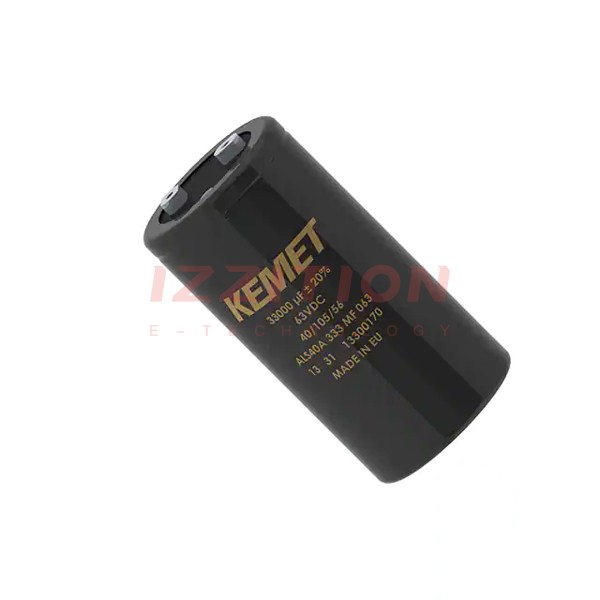

KEMET ALS40A472DF100
