KEMET-ALS40A221DE450 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	220 µF
Tolerance:	±20%
Voltage - Rated:	450 V
ESR (Equivalent Series Resistance):	487mOhm @ 100Hz
Lifetime @ Temp.:	6000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	2.5 A @ 100 Hz
Ripple Current @ High Frequency:	6.2 A @ 10 kHz
Impedance:	242 mOhms
Lead Spacing:	0.504" (12.80mm)
Size / Dimension:	1.417" Dia (36.00mm)
Height - Seated (Max):	3.228" (82.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

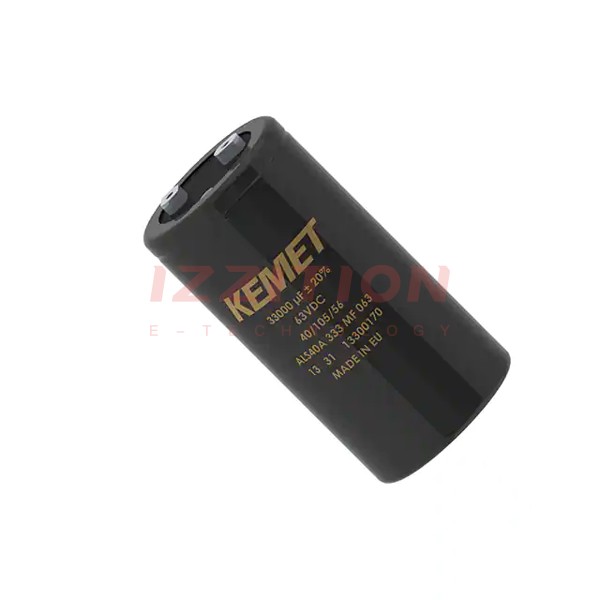

KEMET ALS40A221DE450
