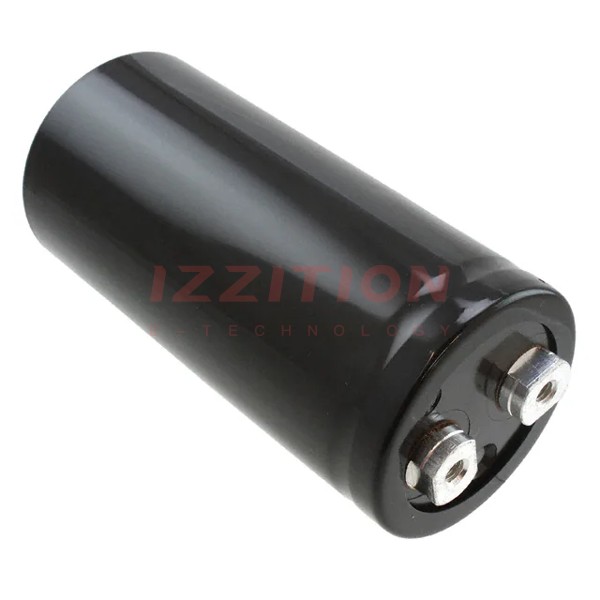

KEMET-ALS40A104KF025 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	100000 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	9mOhm @ 100Hz
Lifetime @ Temp.:	7000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	16.4 A @ 100 Hz
Ripple Current @ High Frequency:	16.7 A @ 10 kHz
Impedance:	8 mOhms
Lead Spacing:	0.874" (22.20mm)
Size / Dimension:	2.008" Dia (51.00mm)
Height - Seated (Max):	4.213" (107.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

KEMET ALS40A104KF025
