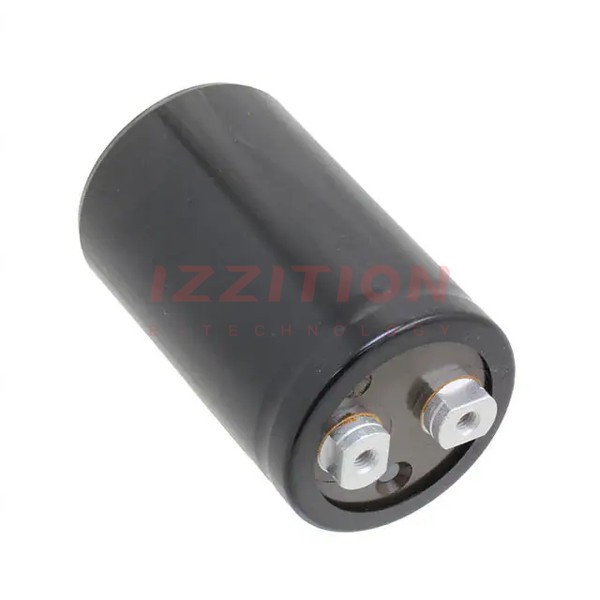

| Part Number | ALS31A103KE100 | ALS30A103KE100 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 10000 µF | 10000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100Hz | 28mOhm @ 100Hz |
| Lifetime @ Temp. | 18000 Hrs @ 85°C | 18000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 10.1 A @ 100 Hz | 10.1 A @ 100 Hz |
| Ripple Current @ High Frequency | 10.5 A @ 10 kHz | 10.5 A @ 10 kHz |
| Impedance | 24 mOhms | 24 mOhms |
| Lead Spacing | 0.874" (22.20mm) | 0.874" (22.20mm) |
| Size / Dimension | 2.008" Dia (51.00mm) | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.307" (84.00mm) | 3.307" (84.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
