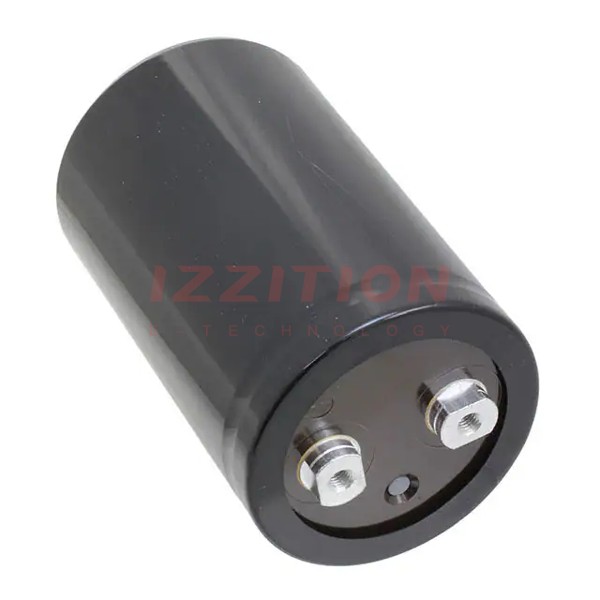

| Part Number | ALS30A473MF063 | ALS31A473MF063 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 47000 µF | 47000 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 19000 Hrs @ 85°C | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 26.7 A @ 100 Hz | 26.7 A @ 100 Hz |
| Ripple Current @ High Frequency | 26.5 A @ 10 kHz | 26.5 A @ 10 kHz |
| Impedance | 7 mOhms | 7 mOhms |
| Lead Spacing | 1.122" (28.50mm) | 1.122" (28.50mm) |
| Size / Dimension | 2.598" Dia (66.00mm) | 2.598" Dia (66.00mm) |
| Height - Seated (Max) | 4.213" (107.00mm) | 4.134" (105.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Chassis Mount | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals | Radial, Can - Screw Terminals |
