KEMET-ALS30A471DE400 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	±20%
Voltage - Rated:	400 V
ESR (Equivalent Series Resistance):	267mOhm @ 100Hz
Lifetime @ Temp.:	11000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	3.5 A @ 100 Hz
Ripple Current @ High Frequency:	7.1 A @ 10 kHz
Impedance:	182 mOhms
Lead Spacing:	0.504" (12.80mm)
Size / Dimension:	1.417" Dia (36.00mm)
Height - Seated (Max):	3.307" (84.00mm)
Surface Mount Land Size:	-
Mounting Type:	Chassis Mount
Package / Case:	Radial, Can - Screw Terminals

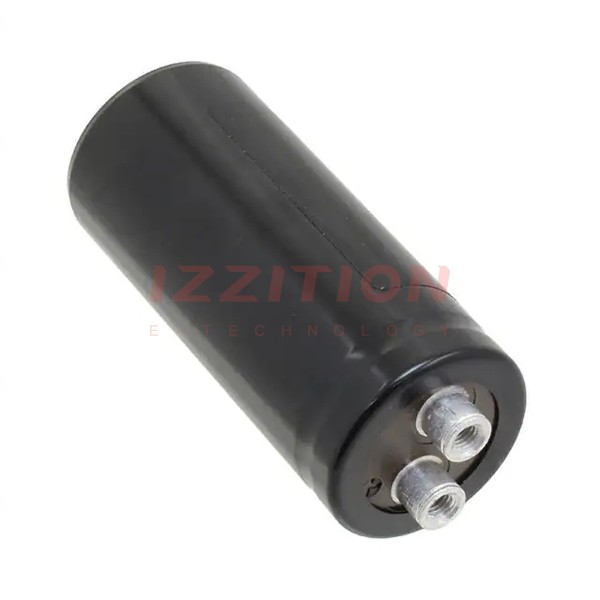

KEMET ALS30A471DE400
